Documentation for HeaderData

top

Schema Document Properties

Target Namespace	http://4psa.com/HeaderData.xsd/2.0.0
Element and Attribute Namespaces	Global element and attribute declarations belong to this schema's target namespace. By default, local element declarations belong to this schema's target namespace. By default, local attribute declarations have no namespace.
Schema Composition	This schema imports schema(s) from the following namespace(s): http://4psa.com/Common.xsd/2.0.0 (at Common.xsd)

Schema Component Representation

<xs:schema targetNamespace="http://4psa.com/HeaderData.xsd/2.0.0" elementFormDefault="qualified">

<xs:import namespace="http://4psa.com/Common.xsd/2.0.0" schemaLocation="Common.xsd"/>

...

</xs:schema>

top

Name	userCredentials
Type	Locally-defined complex type
Nillable	no
Abstract	no

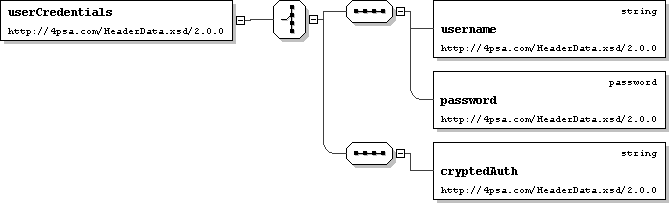

Logical Diagram

XML Instance Representation

<userCredentials>
Start Choice [1]

'Either of'

<username> common:string </username> [1]

'Username for VoipNow server login'

<password> common:password </password> [1]

'Password for VoipNow server login'

<cryptedAuth> common:string </cryptedAuth> [1]

'Base64 encrypted conversion of VoipNow client username'

End Choice
</userCredentials>

Schema Component Representation

<xs:element name="userCredentials">

<xs:complexType>

<xs:choice>

<xs:sequence>

<xs:element name="username" type=" common:string "/>

<xs:element name="password" type=" common:password "/>

</xs:sequence>

<xs:sequence>

<xs:element name="cryptedAuth" type=" common:string "/>

</xs:sequence>

</xs:choice>

</xs:complexType>

</xs:element>
